的主要用途是什么与百度百科：/Purpose and introduction

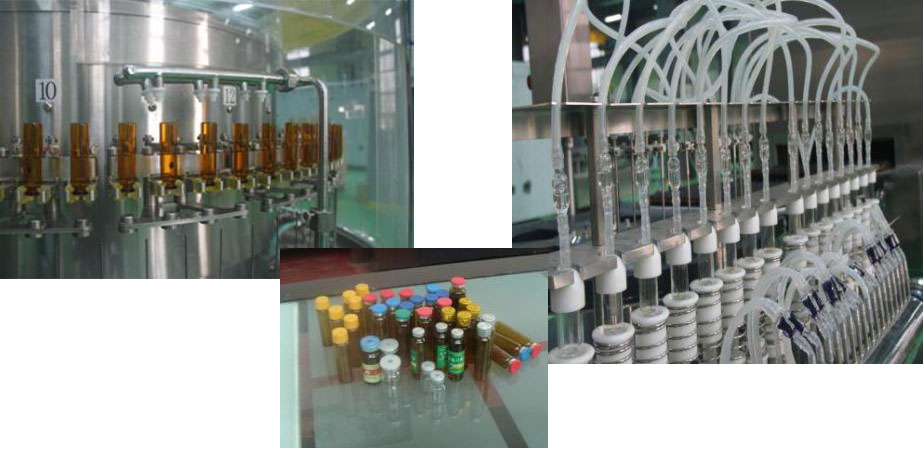

冲剂液洗烘灌轧一体化线由立柱式高周波波洗瓶机、隧洞式自动空调 循环往复高压蒸汽高压蒸汽灭菌真空烘箱、冲剂液装灌轧盖机等组合而成，比较合适于 5-30ml 等各种不同规 格冲剂液瓶的的制作。可进行对otc药品的制作中安瓿瓶淋水、高周波波擦洗、冲水、充 气、烘箱高压蒸汽高压蒸汽灭菌、降温、装灌、轧盖等工序步凑的一体化运营。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

结构特征:/characteristic

◆洗瓶机适合机制手夹瓶，适合多重标准的水瓶座；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用于气水喷针往复运动监控嵌入措施，进行维护清洁效用好，不浪费的行为再生资源。并设置针架防会抖保护装置，加快喷针嵌入瓶盖的准度度，缩减断针后果再次发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整块水汽输送管、喷针可以单独的拆开，不要了交叉重合破坏，具备GMP规范了规范；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前安装储存块，有保护好罗杆，缩短碎瓶的作用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶运用总体进口清关数据同步带，连入拨块输送管服用液，加载稳固靠谱In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆干燥箱主要包括红外线电加散热器，不锈钢材质电加散热器双重电进行供暖室温匀称性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆罐装轧盖机必选配瓷砖泵、装饰管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线采用了PLC总管理、定频器、摸屏管理技木，启用稳定性高安全耐用。摸屏可出现信息各单机游戏的启用壮态，各管理点的通水压力、大气压、风压气压、水温等出现信息，各触点开关壮态和出现问题出现信息，出现问题自身检验和出现问题深入分析及清除方式。使全种植时高于全机械化管理，联线包括三机自动化控制平稳平衡装置，保障种植义均安全耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.给出的客户的须要，还可供选购：According to the needs of customers, but also available for selection:◆西门子系统化、德力西、三菱PLC、台达等品脾把控系统化；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负压、水溫及高周波波刚度、灰尘a粒子、风量优酷云检测工具、報警、纪要、复印软件。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室底部隔离器体统。Mixer ORABS, CRABS, aseptic isolator system.

的技术指标：technical parameters

不适用外形尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装表面粗糙度Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖不成品率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
