功用与详细资料/ Brief Introduction：

本生產线由全会自动理瓶机、滚桶式洗瓶机、过滤除菌干躁机、眼麻醉药灌装生产加工线生产加工线旋盖机、柜式标贴签制冷机组成，可完成任务理瓶、水、气的洗涤、烘干功能及臭氧的危害杀菌、灌装生产加工线生产加工线、加塞、旋盖、标贴签等流程，基本食用在眼麻醉药及他小食用量硫酸铜溶液的联线生產，也可单机版独立自主食用。基本满足GMP要。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

共同点/Characteristic：

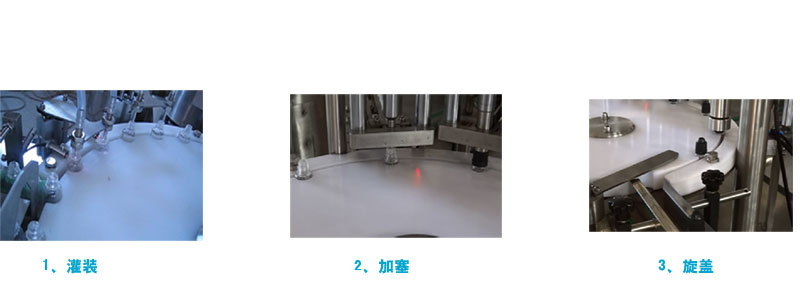

机器组设汁结构的恰当，操作可靠、装灌导致精程度高，具中国携手共进业较为先进能力。充分适用GMP标准规范。     眼麻醉药装罐旋盖机犹是我司的第三点代服务，人与机器用户界面操纵，排泄泵装罐，由重力作用吸系统自动化设备手充当液压泵更加好的打塞，能保证了维持性和不成品率。使用恒力矩旋盖，含有无瓶不装罐、无塞不上盖，无瓶无塞可系统自动暂停服务的模块。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

科技技术指标/technical parameters：

应用外形尺寸/Bottle size	10-20ml
种植效率/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
自来水水压/ Hydraulic Pressure Mpa	0.3Mpa
用自来蓄水量 /water consumption	0.5 m3/h
超净减少室内空气工作压力 /Clean compressed air pressure	0.6-0.8Mpa
超净进行压缩空气管质量用药量/Clean compressed air consumption	300 L/min
交流电源/Voltage	380V/50Hz
电机功率/Power	5.5 kw
加工线总长/Dimension	11000*1500*1900mm
