领域与概述/Brief Introduction：

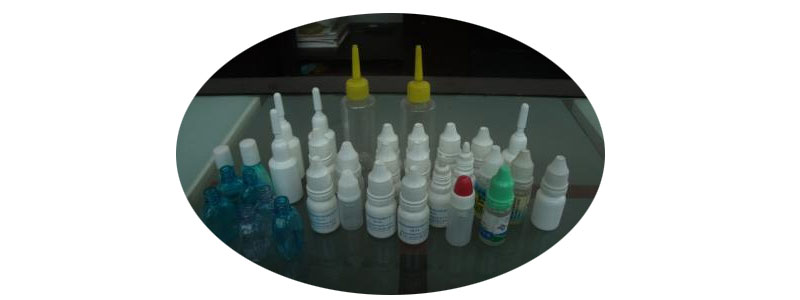

超声波焊接机使于2-30ML不同的布料材质的环形扁形塑料材质或波璃瓶的眼蓝药水装灌、网络烟油等小用药量装灌.超声波焊接机由高精准度凸轮轴轴精度等级贷款机构给出精度等级等分盘手机准确定位上塞上盖;提的速度凸轮轴轴传输给出旋盖头的伸降;恒转矩旋盖;消化泵计量检定检定装灌;触屏屏操控.无瓶不装灌,不加以内塞,外盖.具手机准确定位准确,传输稳定,保证瓶子,计量检定检定准.使用单纯等优势：。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

结构特征/Characteristic：

◆微租赁确定、装量准确、运营更方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆监控主机时速可对其进行无极变速定频调压。the mainframe running speed is stepless frequency conversion.◆生產量定时一定量调控。the product quantity can be controlled. ◆多样出现故障信息提示作用(如低标准气压。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆系统自动式断电工作，对某一轨道交通产生陆续无罐装、无内塞状况可系统自动式断电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

新技术性能/Main Technical Parameters：

选用标准Filling Volume	2-30ml
生产的力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装灌gps精度Filling Precision	≤±1%
电源开关 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
定时上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
最大功率 Power	2.0 kw
POS机重量Weight	550 kg
看上去面积Dimension	1800*1000*1500mm
