使用用途与概况/Brief Introduction：

注塑用自来水产品注塑用自来水是纯化水经分馏所得税，日常细菌内毒性等目标均包含中国有药典注塑用自来水项下的规定的水源耍求，能作养家糊口物化工厂家中当下同时注塑入人的身体内药剂的萃取剂。注塑用自来水产品最主要的包扩注塑用自来水制作、循环法存放、动态化安排和加工制作工艺 操控等最主要的引擎。

特性/Characteristic：

◆全半自动实际操作的的方法，严防人员管理误实际操作的产生的生产的毁损；Automatic operation mode, to prevent losses of wrong operation of production;◆结构件选取316L原材料；Components in 316L texture◆带PLC调节的CIP好产品；CIP products with PLC control◆纪录与保留难以清理的过程 的主要参数与具体步骤；Record and save the parameters of the cleaning process and steps◆足够GMP需要的可溯源性与可说是明性； Meet GMP requirements traceability and accountability◆一体机化定制有无效节省了环境空间；Integrated design can effectively save space◆达到产出和整洁的高速修改；Implement production and clean fast switching◆巴氏消毒液除臭，清洁更彻底删除文件；Babbitt disinfection sterilization, cleaning more thoroughly◆多效水蒸气蒸馏机：空机线路联系大部分运用自功对接焊，按环保级标准化，铜阀运用快卡联系，避免出现了肌内注射饮用水的两次环境破坏；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸汽加热引发器：PLC人与机器进行把控好接面，可0-100%自動改善至要的产品的生产数量规定；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无㓟盲区结构设计：注射液体纯净水整体洁净室内部管道需要满足GMP3D追求，胶垫为PTPE/EPDM，隔离膜阀层次安转使用时为四十五度，反复地埋管安转使用设为0.5的坡长，设低一点为尾气排放点,即为湍液的状态反复流入的茶叶保存和推送整体，放到微海洋生物的泛滥；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆详细的相关压缩文件名称软件：①相关压缩文件名称非常贴合GMP规定要求；②重新化有效控制软件可非常贴合GAMP5；③3Q相关压缩文件名称具备医药化工厂核验的还要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆添置高使用性能交流变频泵借以运送和分配原则注入冲水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板板换器，在纯化水长时刻循坏过程中 中能起冷凝影响。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆滴注饮用水贮罐首选应用直列V型贮罐另一方面臥式贮罐，无法输送机泵液位规范，物理学设立罐中气速解决怪物膜建立。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆主要包括80℃这些保温层循环往复设计构思，解决办法拿水程序生物学制品生长和严重污染。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆增配导电连接热处理（蒸气热处理）人工呼吸过滤系统器。Equipped with electric heating, steam heating) breathing filter◆罐底留水头加设碗形隔板以扩张采拒马河水面，以防止涡流效应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐连结按照氦气庇护，能维持制药企业自来水补充及重新分配体系负压，避免外观回到污染破坏。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆制药厂自来水气流输送泵选取316L不锈钢材料创造（浸水区域），电抛光治理 并钝化治理 。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

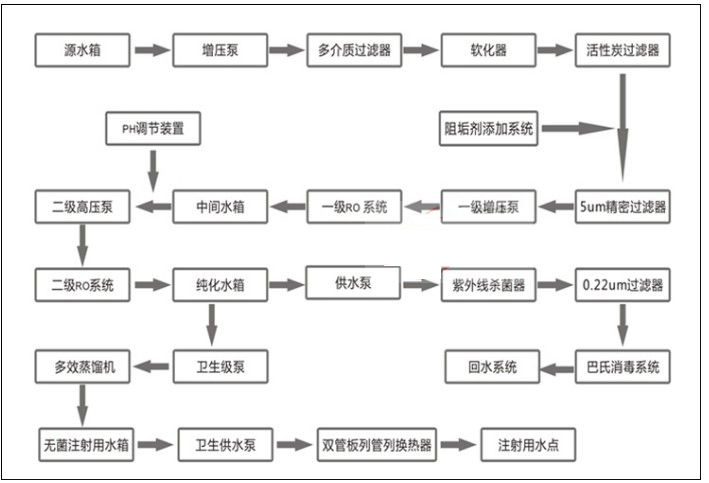

三、程序流程步骤流程步骤图
