功用与间介/Purpose and introduction：

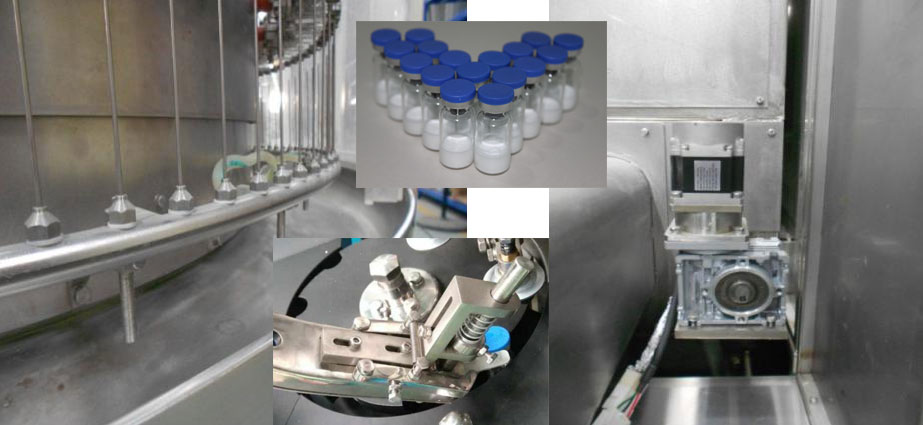

NQGF型西林瓶粉针洗烘灌装轧盖标贴纸协同线 由QCL国产直列V型超音波检查波洗瓶机、AQMR地下隧道式暖风反复杀菌干燥箱、NQFGX国产数铣罗杆粉剂灌装机、NQ-50轧盖机、NQWTB-120标贴纸飞机机组成，也可单机手游食用。適合于7-25ml年纪的西林瓶粉针的产生。能来完成自动喷淋系统打压试验、超音波检查波粗洗、瓶壁上水清扫擦拭、瓶内腔维持二级反复水清扫擦拭、一场吹气、一场新鲜毛肚水清扫擦拭、维持二级吹气、瓶壁上吹气、除污、加热、烤干杀菌去热原、保压、灌装、加塞、轧盖、标贴纸等二十几个道生产工艺。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

的特点/characteristic：

◆洗瓶机选用机械装备手夹瓶，适用人群多种多样标准的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶用于雾水喷针回转跟踪软件添加图片图方法，的清洗治疗最合适，业绩能量。并均有针架防抽动器，的提升喷针添加图片图水瓶座的强度度，下降断针症状引发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶某个气水内部管道、喷针完成独立的拆开，杜绝了交叉式环境污染，完全符合GMP规范性规定；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆式前改装响应块，有保护的丝杆式，以减少碎瓶影响；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶所采用总布局進口此次带，拼接拨瓶块气力输送机西林瓶，正常运行靠得住靠得住；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆恒温干燥箱采用了热气配置热处理，室温饱满，节能环保；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆恒温干燥箱安装有防莫名其妙断掉电源保养模块。运营安全性高；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配不断循环油冷试验装置，不耗损空间新风量，减低空间的压值不平衡性的风险分析下滑功能好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘干箱可配差压自然稳定性调节器系统软件变少屋里和烘干箱的差压不稳定性有的常温段偏差，灌装生产线间洗烘间气温升高等专科学校全方位表的疑问；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆干燥箱存在DOP验测接口类型(有压力、风压、玦尘粒子束验测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烤箱冷凝段可带在线上灭菌处理功能模块(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆真空烘箱网带可带超音波涌入CIP一直在线洗模式；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烤箱内腔室可开始全周边所有地方、多方位来超高压水清洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆灌装机应用国际联盟更先进的的设计方案管理理念，包括访问速度度，同时分瓶准确度，更換标准件便于；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆全自动灌装机机所采用交流电系列伺服三相异步电机安装驱动全自动灌装机挤出机螺杆滑动，装量明确；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆散装机主要采用装量的的调整立即在接触屏上变现；Mixer packer adopts the load adjustment directly on a touch screen;◆分开装袋机要选配百级间歇式层流罩；Mixer packer optional circulating laminar flow hood best level;◆散装机无瓶止住散装，无瓶不带塞系统。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线主要采用PLC总操作、交流变频电机、接触屏操作高技术，电脑开机运行相对稳定可信。接触屏可屏幕上出现各单机游戏的电脑开机运行情况下，各操作点的水流量、汽压、静压、温等屏幕上出现，各转换开关情况下和错误代码屏幕上出现，错误代码自我价值珍断和错误代码研究及避免的办法。使一小部分的生产销售阶段可达到主动化操作，联线兼备自动控制失衡装备，可以保障的生产销售教育均衡发展可信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.基于大家的须要，还可供配搭：According to the needs of customers, but also available for selection:◆西门子软件系统、施耐德开关、三菱PLC、台达等厂家把控软件系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气水压、水的温度及多普勒彩超波难度、颗粒物微粒、风速等级高清在线论文检测、报案、计录、复印机系统的；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌操作要进行隔离器体系。ORABS, CRABS, aseptic isolator system.

技术水平技术指标：/technical parameters

规格 model

制造本事production capacity

洗瓶适合率Washing bottle percent of pass

洗瓶开裂率Washing bottle breakage

消毒温差sterilizing temperature

分开包装确定误差The repackaging of error

加塞完成率Gasser percent of pass

空气中层流整洁度Laminar air cleanliness

蒸空抽速Vacuum pumping speed

电感量 capacitance

电压power supply

总电池容量Total transmission energy

性能规格尺寸boundary dimension

7-25ML国家标准下载西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
