作用与间介：Purpose and introduction

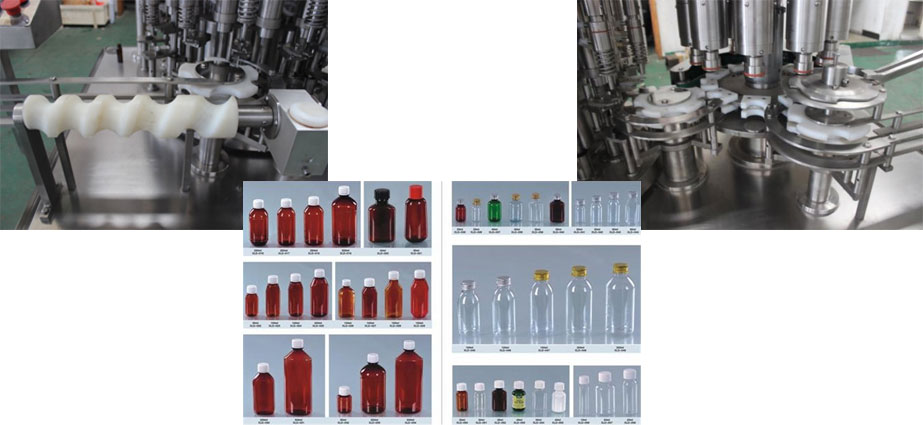

远程服务器适于于对30-500ML类别有机瓶子、氟可乐瓶的装罐封好。选择经济往来交往式活塞件进行装罐，电磁波震荡送盖，需要轧盖(合金材料式)或旋盖(氟塑胶盖)封好，需要和先后的种植步骤产品连接起来组成部分种植线，不仅如此需要鉴别百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特性：characteristic

装量准确无误，杜尽渗漏。缺瓶不灌装线。 变频式变速。 自主显视筛选功能主治。 整套装置均按GMP必须设计方案。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技艺性能参数/technical parameters：

型号 model	NQGX30-500
采用产品规格Cutting dimension	30-500ml
生厂程度Production capacity	80-200瓶/分（罐/秒钟）80-200 bottles/min (cans/min)
包装的精密度 Filling accuracy	≤±1%
电源适配器 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
自动化净重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
