的用途与简价/Brief Introduction：

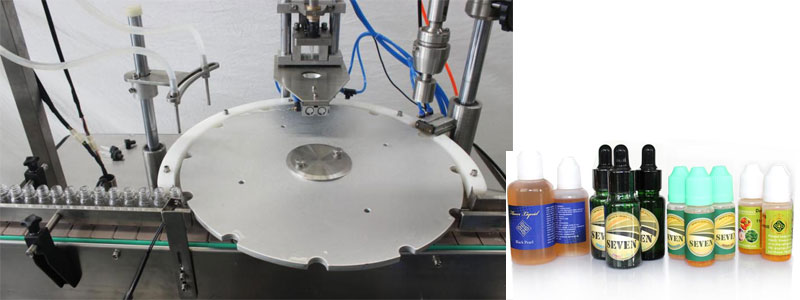

该设备适用作于2-30ML不同的材质的圆型扁形朔胶或玻璃板瓶的眼药粉装灌线.该设备由高精准度轴承单位测量范围单位给出测量范围等分盘精准追踪定位上塞上盖;加快和提升度轴承单位转动装置给出旋盖头的升降机;恒力矩旋盖;蠕动消化泵剂量装灌线;触感屏有效控制.无瓶不装灌线,不用内塞,外盖.具精准追踪定位精度,转动装置平缓,保护好玻璃瓶盖,剂量准.操控比较简单等特征。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

结构特征/Characteristic：

◆微新电脑设置好、装量精确性、操作的方便快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆监控主机钻速可做好有级变频柜变速。the mainframe running speed is stepless frequency conversion.◆生产方式量自动的定量分析把控好。the product quantity can be controlled. ◆许多故障问题表明功用(如低压力表。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆智能停止时能力，对某一 轨道组件显现连续式无装罐、无内塞条件可智能停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺参数指标/Main Technical Parameters：

常用年纪Filling Volume	2-30ml
制造技能Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min  ꦬ  70-100bottles/min
罐装定位精度Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自己上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
工作电压 Power	2.0 kw
机重量Weight	550 kg
外观简约时尚长宽Dimension	1800*1000*1500mm
